Description
- SMART DISCHARGE: Automatic timing water tank can automatically timing drainage, intelligent drainage. No manual discharge, is your air compressor system to prevent damage magic weapon
- ADJUSTABLE TIME: Timer gives you flexibility to adjust within time interval (0.5-45min) and discharge time (0.5-10s) as needed
- FILTER AND DRAIN: Timed water tank has self-cleaning, anti-clogging, non-sticking and other functions. Built-in strainer prevents debris from clogging the drain valve. Detachable after cleaning, simple maintenance
- EASY TO INSTALL: Drainage valve is L-shaped structure, simple structure. Just aim the valve body at the outlet and tighten it. Manual operation without tools is very convenient
- MANUAL TESTING: The drain valve comes with a test button and you can do manual test before use, the test is simple and convenient
FEATURES:
An automatic timed water tank is acting on air compression equipment, which can regularly automatic drainage, reduce equipment damage, and prevent rust. It can well realize the timing of automatic discharge, achieve the effect of intelligence, which is your best choice to prevent air pressure system damage.
The shell is made of ABS+PC flame retardant material, and the protection grade is IP65. It has a high safety factor, so you can feel at ease to use. Valve material is forging brass which is enticaustic and durable. The bronze color gives you a fashionable visual experience.
Emission time and interval time are controllable. The timer indicator with its own solid-state structure can be adjusted as needed within the time interval (0.5-45min) and discharge time (0.5-10s) with high flexibility.
Equipped with a ball valve filter, which can help you prevent debris from clogging the drain valve. It is dismountable for you to clean and maintain it.
Easy to install, fully automatic operation. This product does not require complex installation steps, just manually tighten the interface.
There is a test button and you can do manual tests conveniently.
SPECIFICATION:
TYPE: 2-way direct-acting valve
IN / OUT PORT SIZE: 1/2"
FLOW APERTURE: 2.5mm
INSULATION CLASS: H
MAXIMUM WORKING PRESSURE: 1.6Mpa
MAXIMUM TEMPERATURE: 90 °C
MANUAL TEST BUTTON: Yes (microswitch)

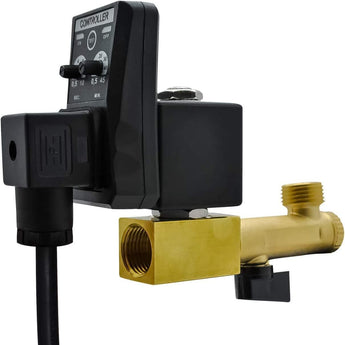

PACKAGE INCLUDES: 1 x Air Compressor Tank Drain Valve with 1.8m power cable
