- HOW DOES THIS BENEFIT YOU: When the electrical demand of the house starts to exceed that of the generator, by using our smart management modules to manage large electrical appliances and sub-panels, no need to change to a larger generator, this can reduce the size and cost of your generator without sacrificing backup coverage

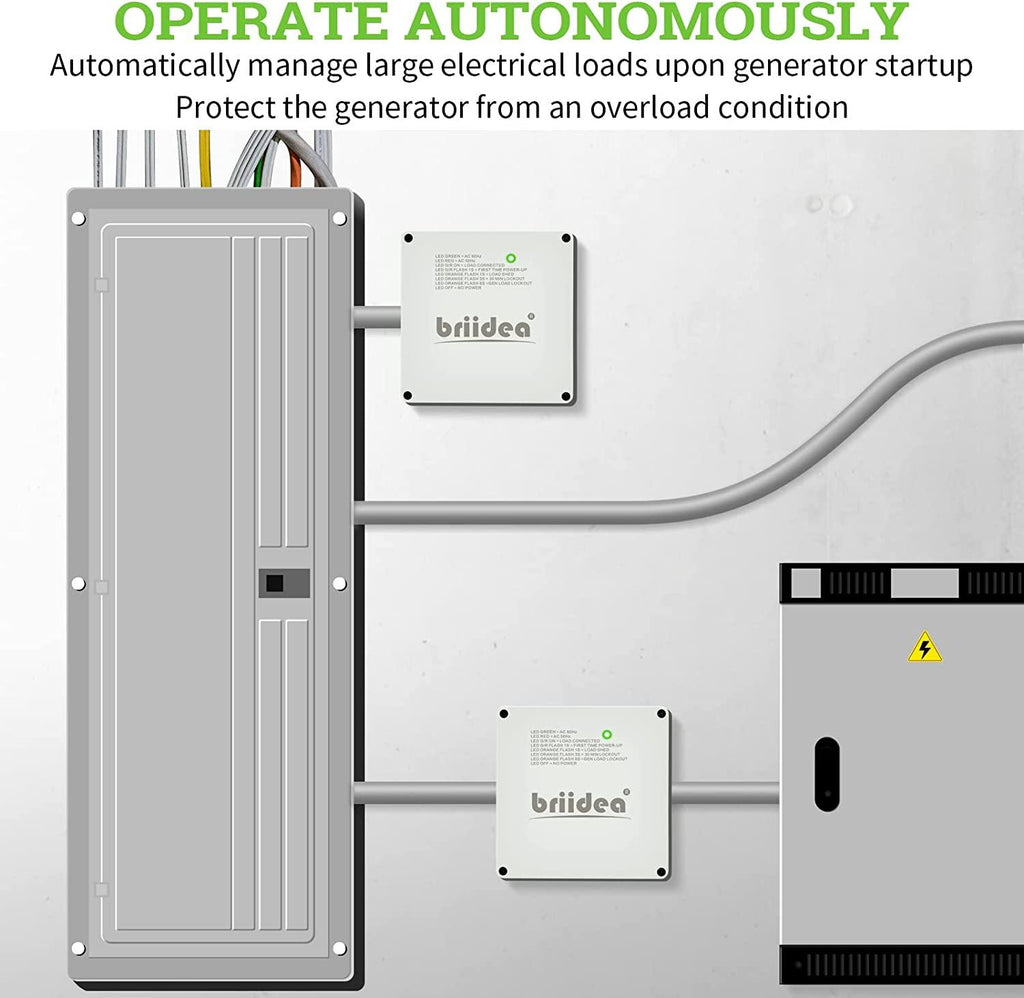

- AUTOMATIC OPERATION: The smart management module is self-aware and operate autonomously. The modules monitor the frequency of the power produced by generators, if frequency falls to an unacceptable level, it will automatically shut down the connected circuit or device, which helps protect the generator from an overload condition

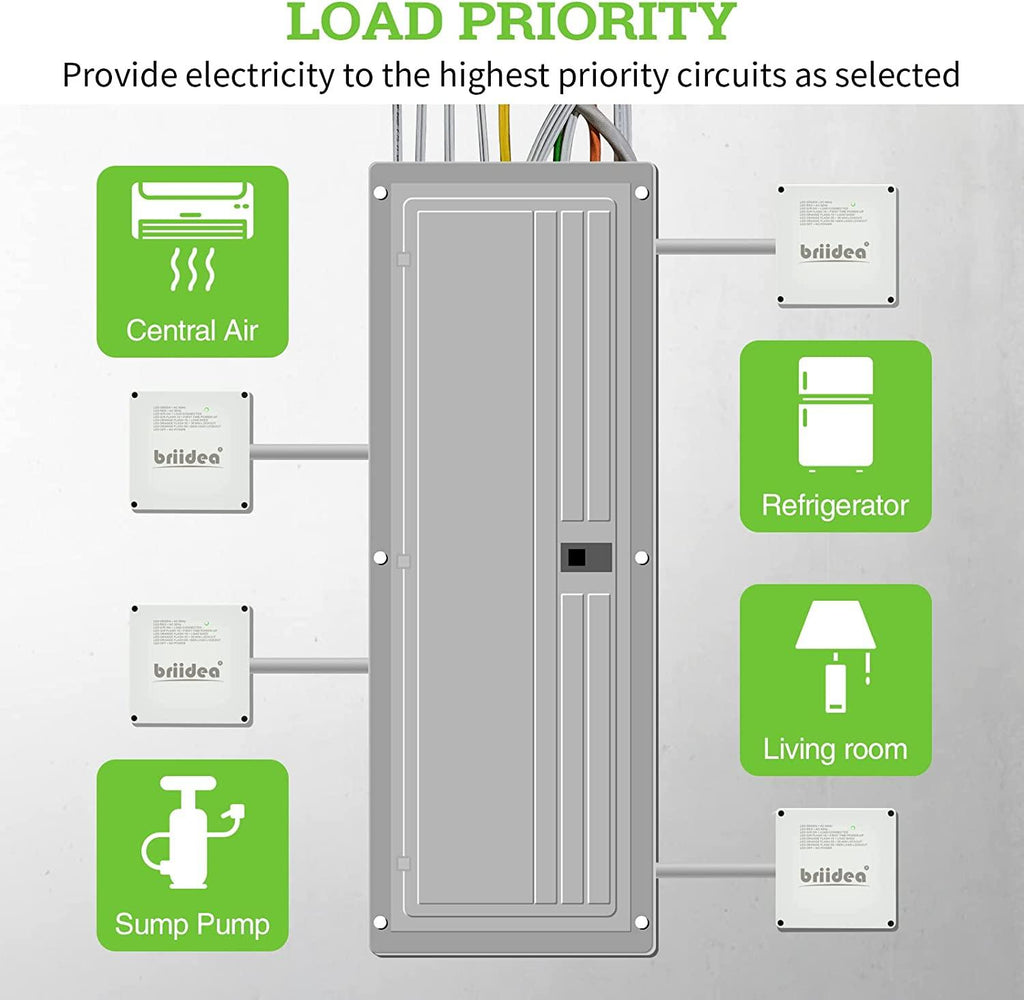

- LOAD PRIORITY: It will provide electricity to the highest priority circuits as you selected during an outage, so you can get the most from your generator. Up to eight smart management modules can be installed per system, depending on your needs

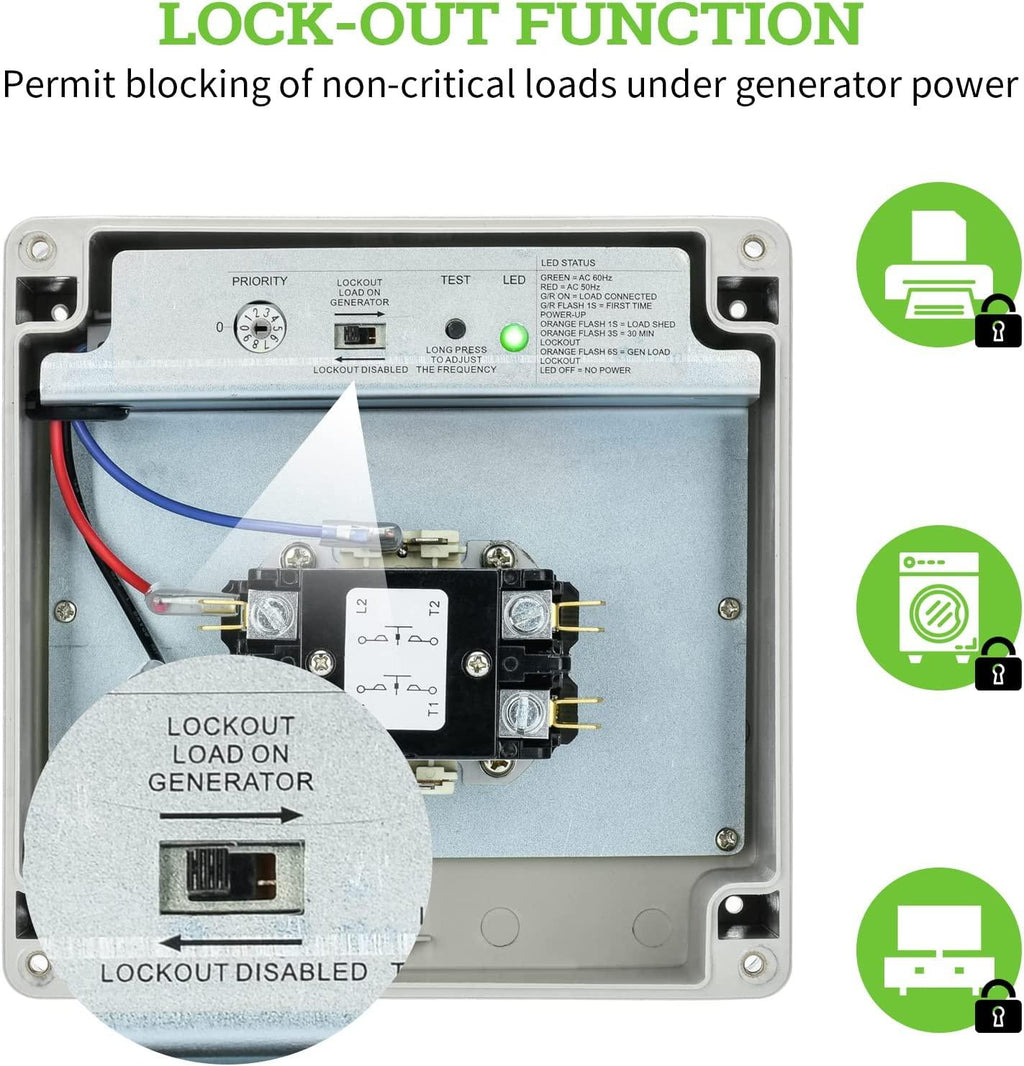

- LOCK-OUT FUNCTION: It has lock-out function for non-critical loads under generator power, so no power is supplied to these loads that do not need to be run in an outage, this is the most cost-effective solution

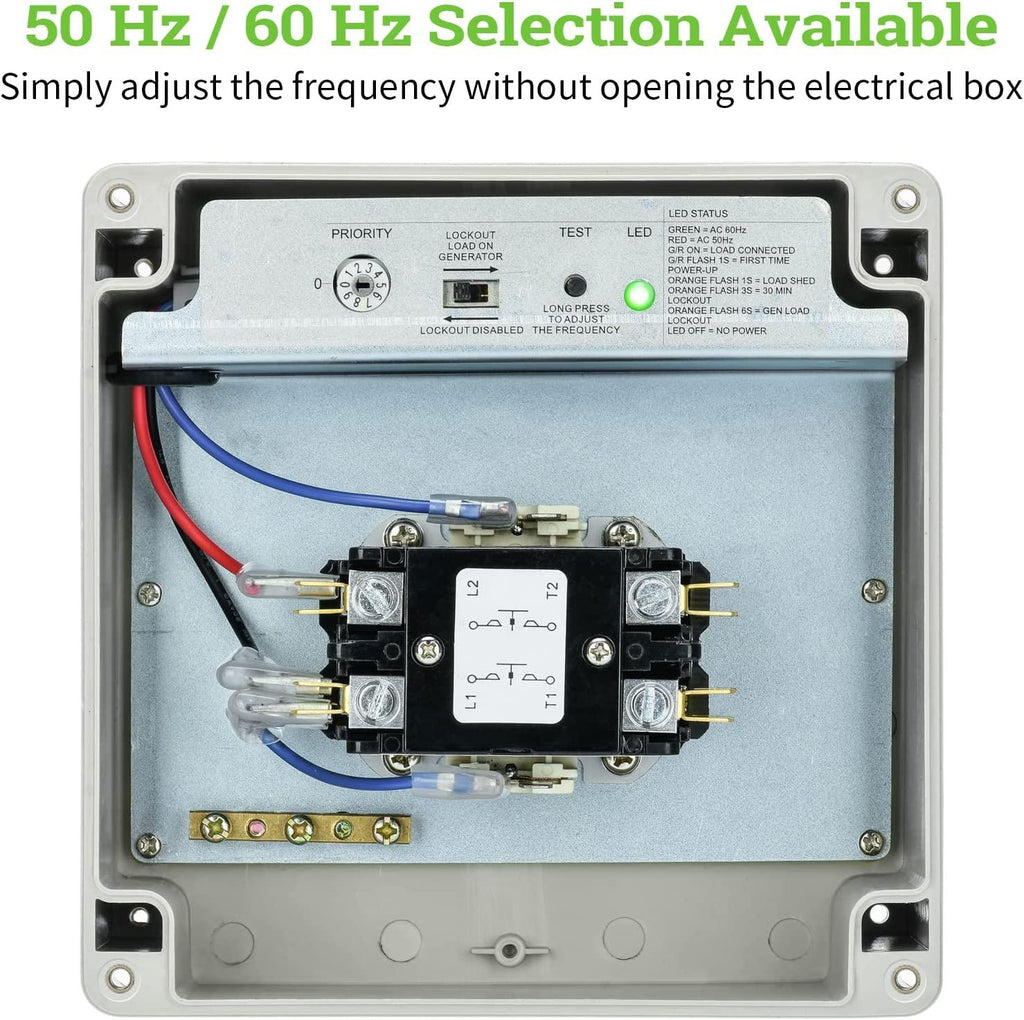

- MAXIMUM COMPATIBILITY: Smart management modules work with any home standby generator and transfer switches. 50 Hz/60 Hz selection is available, simply set by button without opening the electrical box
Briidea Smart Management Module is designed to protect the generator from being overload. The modules monitor the frequency of the power produced by generators, automatically shut down the connected circuit if it falls below a certain threshold. Using smms can reduce the overall size and cost of your generator system. It has lock-out function for non-critical loads under generator power. Up to eight smart management modules can be used. 50 Hz/60 Hz selection is available, simply set by button without opening the electrical box.
Input Voltage 240 VAC
Current Rating 50A resistive, 40A inductive
Locked Rotor Amp Rating 180A
Motor Rating 3 HP
Contactor Coil Voltage 240 VAC
Easier to install, no complicated wires are required, helps lower additional wiring installation costs, providing the best whole-house generator option to fit any budget.

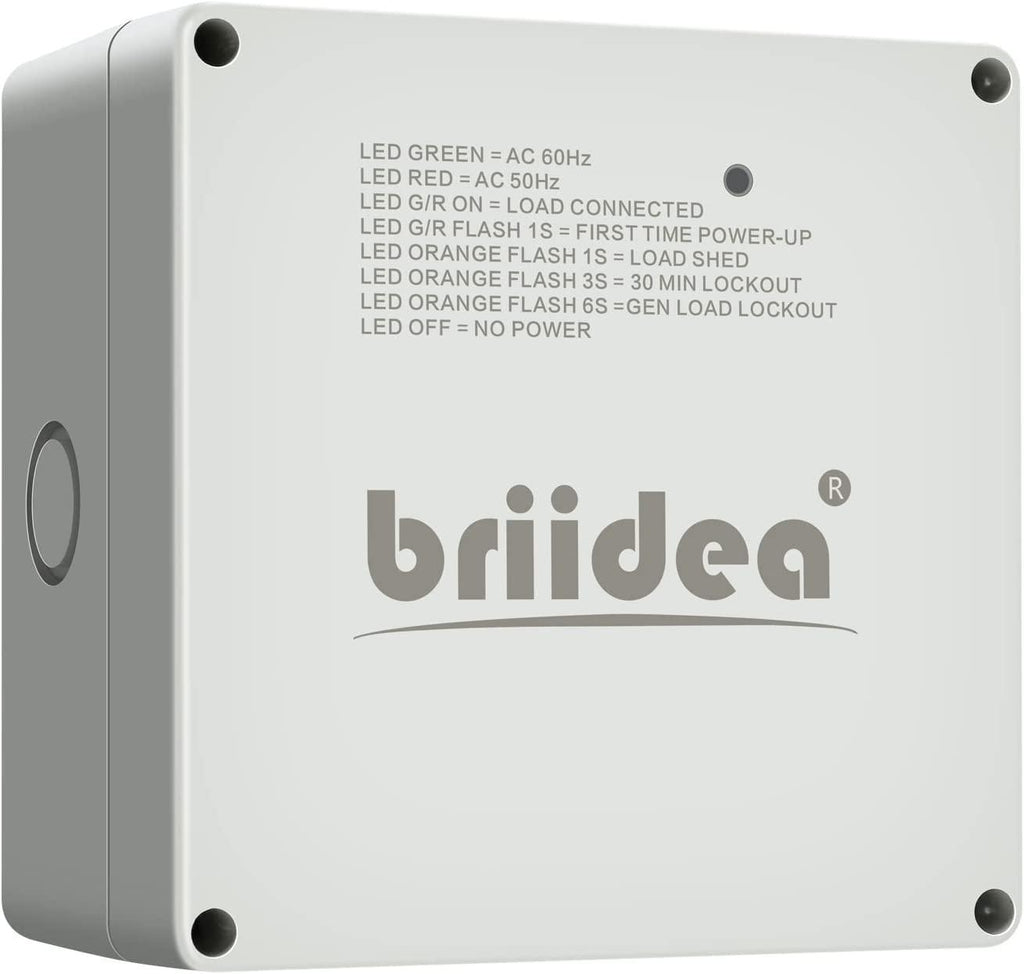

Easy to Check with Externally LED Lights
The load status is clear at a glanced, easy to view without opening the electrical box for convenient power management during an outage.

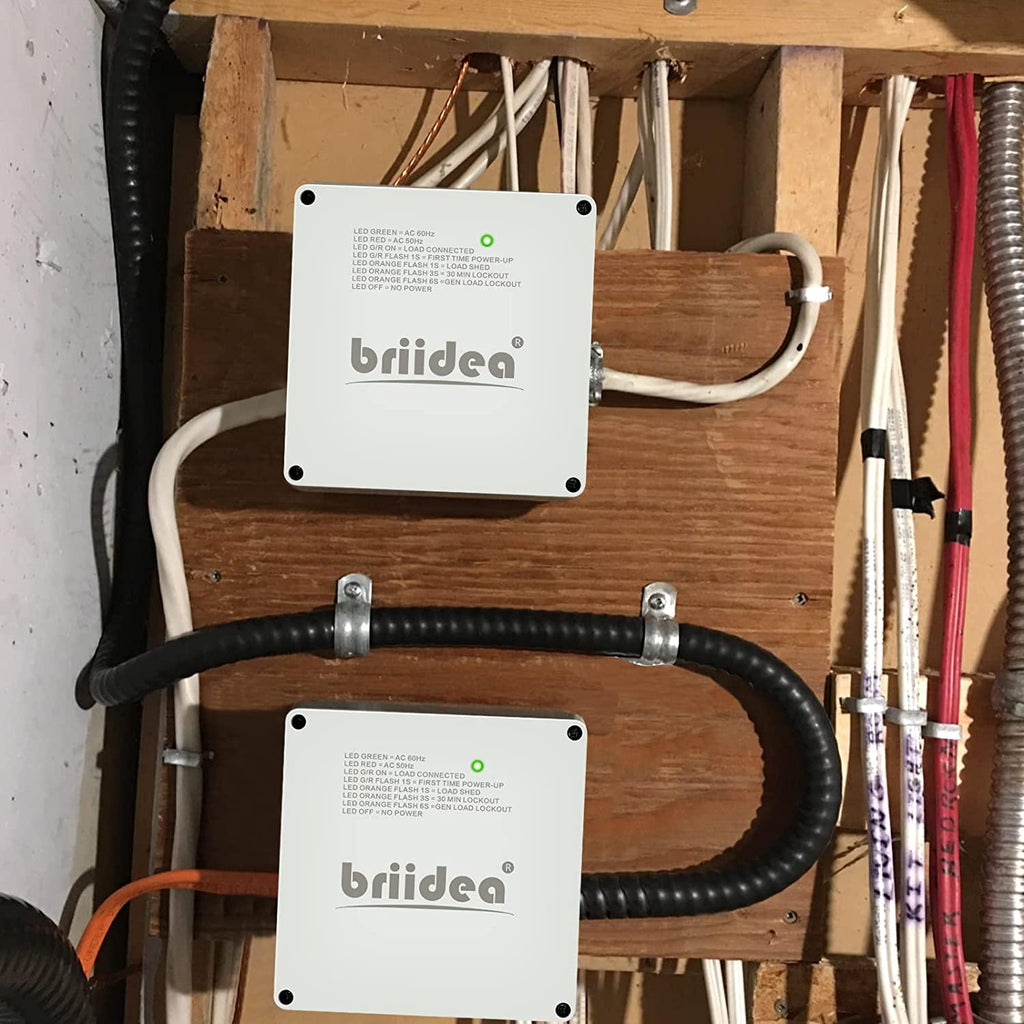

The strong enclosure is weatherproof and dust-proof, with this outdoor-rated enclosure, the smart management module allows a lot of flexibility for installation. It can be mounted and installed anywhere between the breaker and the item being powered.
