Description

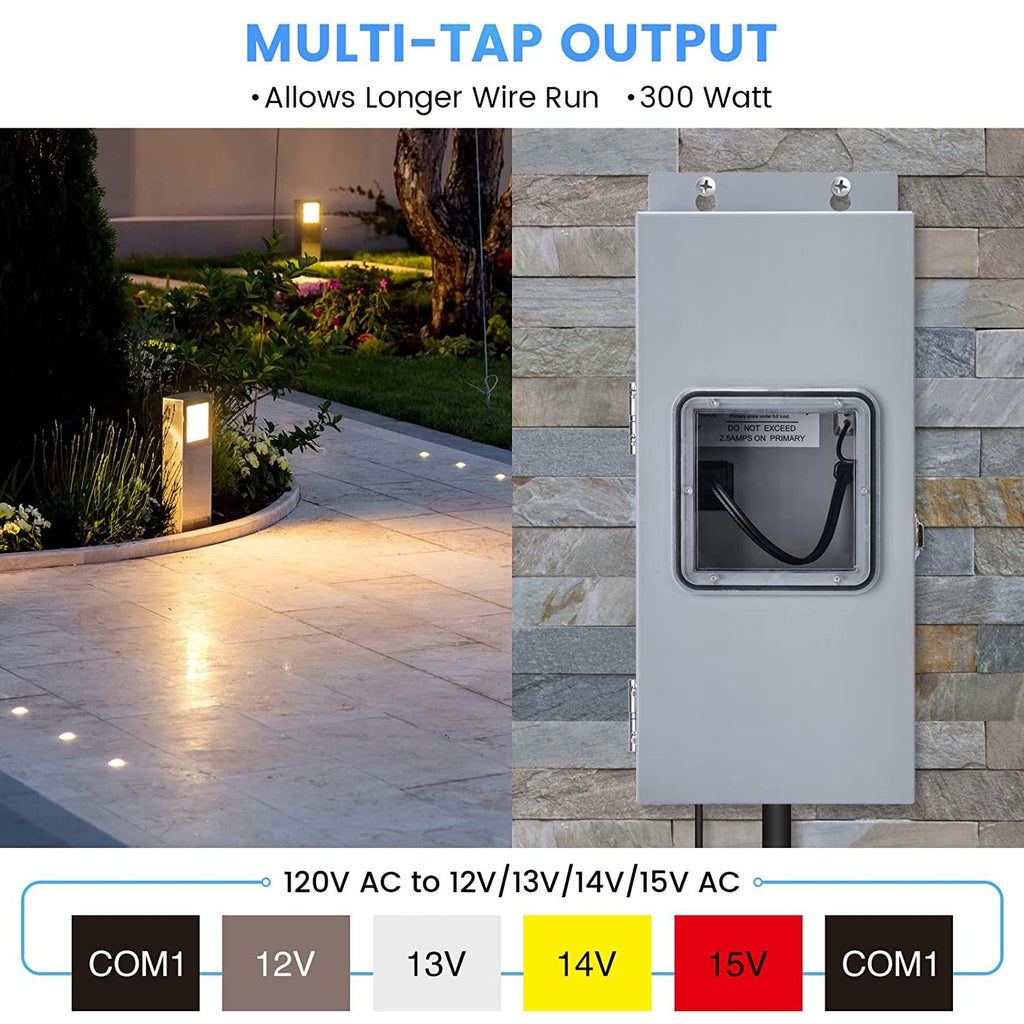

- MULTI-TAP OUTPUT VOLTAGES: 300W, convert 120V AC household voltage to 12V/13V/14V/15V AC safety voltage. With this standout feature, you can run longer wires without the trouble of voltage drops
- QUIET OPERATION: Using high-performance toroidal core, lets this low voltage transformer operate quietly, reliably, and with better efficiency. It produces less buzz and runs cooler than EI laminated transformers
- DUAL PROTECTION: Primary: auto-reset thermal circuit breaker. Secondary: 25A magnetic circuit breaker. They provide overload and short circuit protection effectively, using more at ease and secure

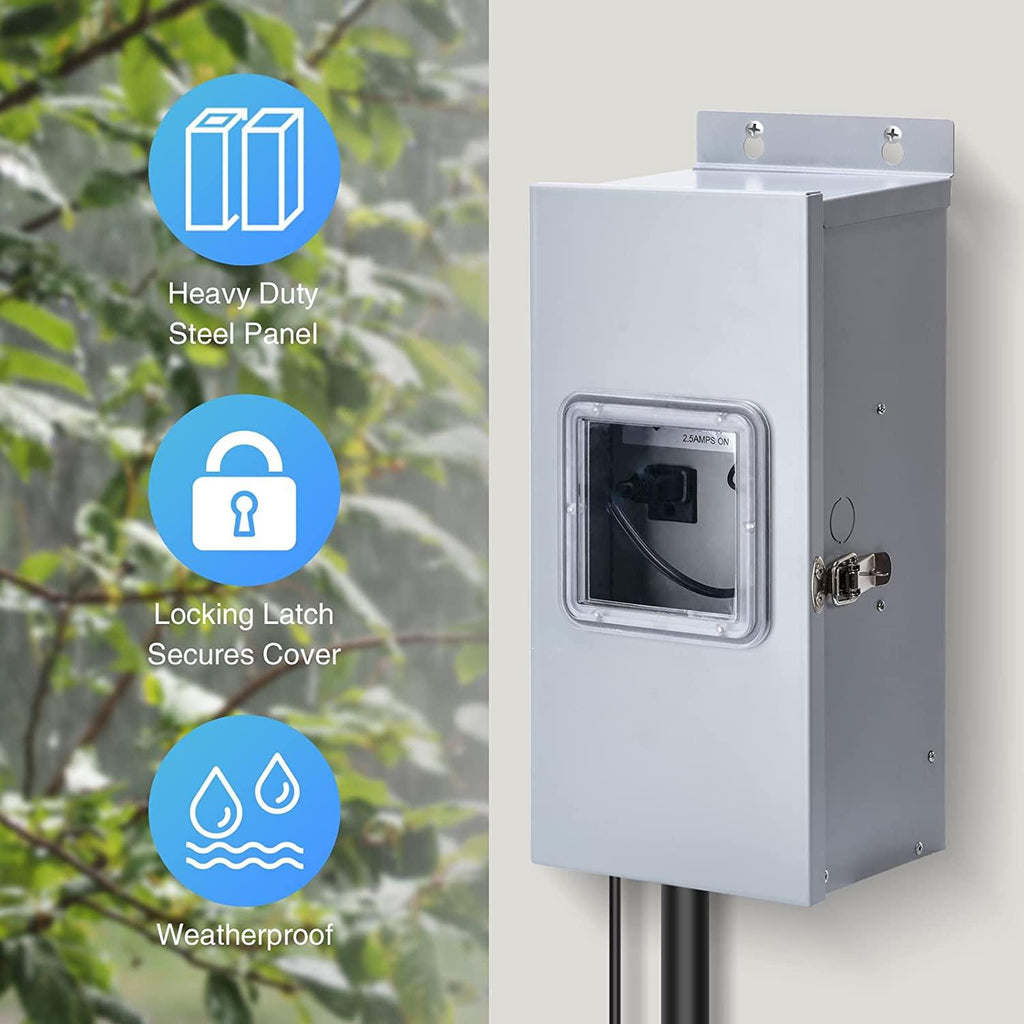

- PREMIUM QUALITY: This low voltage landscape transformer is made of heavy duty steel panel with baked on polyester powder coat finish for durability, solid enclosure with locking latch, protects your transformer from rain, snow, dust, withstands years of use. The transparent visible window on the front cover enables you to view the internal state without opening the box, very convenient

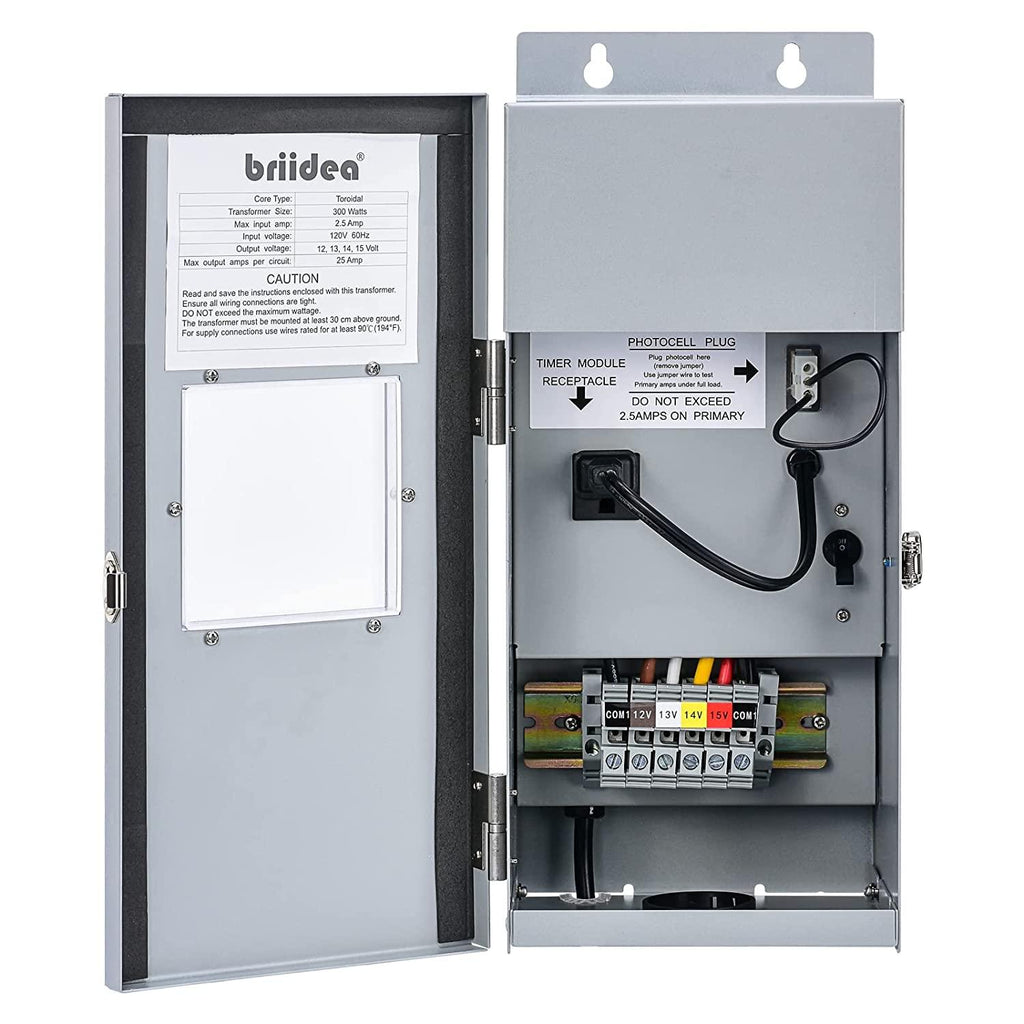

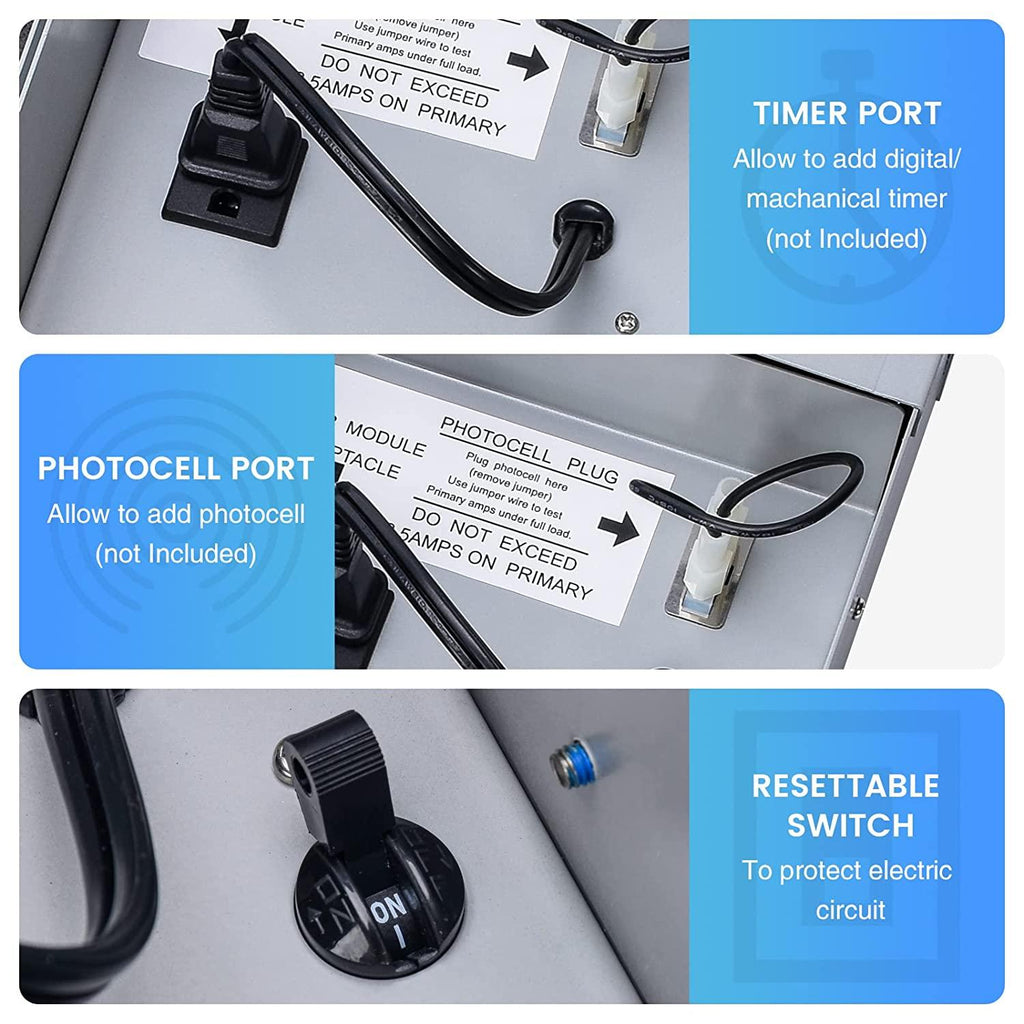

- WORK WITH TIMER & SENSOR: Briidea landscape lighting transformer comes with a timer and photocell port, which allows you to add a timer (not Included) and photocell (not Included) at anytime, that can automatically turns on landscape light at dusk, and off at dawn, or set to a certain time
Briidea 300W Low Voltage Transformer
How to Choose a Suitable Transformer
1.Calculate the total amount of wattage required by the lights that are being powered from the transformer.
2.Simply multiply the wattage of a single unit with the total number of lights.
3.Choose the transformer that is large enough to support the total wattage you need.
For Briidea low voltage transformer, the total power of the landscape lighting should not exceed 300 Watt (400Wx0.75).
Specifications
Input: 120VAC, 60Hz
Output: 12V/13V/14V/15V AC
Maximum Rated Current: 25A
Cord: 6ft, SJTW 18AWG
|
|
|
|
|
|---|---|---|---|
Multi-Tap Output Voltages300W, convert 120V AC household voltage to 12V/13V/14V/15V AC safety voltage. With this standout feature, you can run longer wires without the trouble of voltage drops. |
Premium QualityThis low voltage landscape transformer is made of heavy duty stainless steel, solid enclosure with locking latch, protects your transformer from rain, snow, dust, withstands years of use. |
Work With Timer & SensorBriidea low voltage transformer comes with a timer and a photocell port, which allows you to add a timer (not Included) for timing function, or photocell (not Included) to automatically turns on/off landscape light at dusk and dawn. |

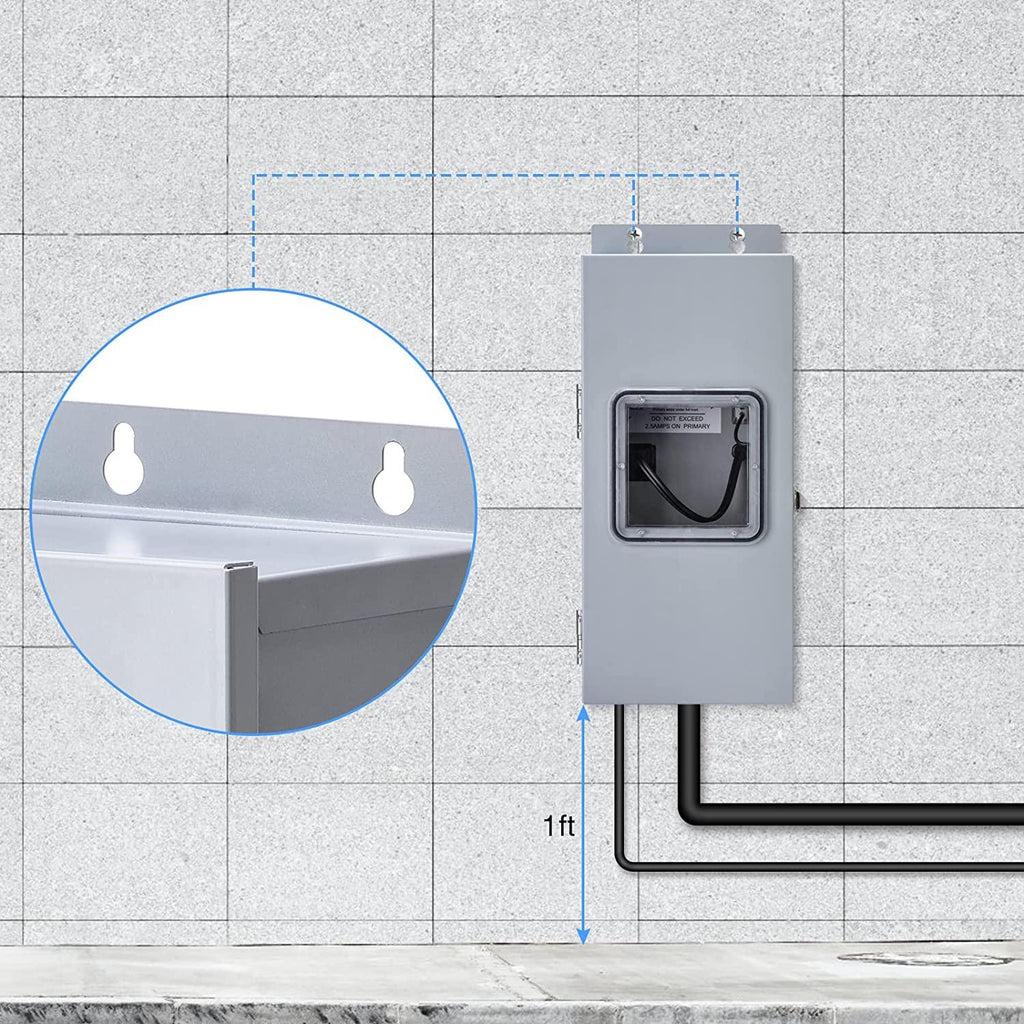

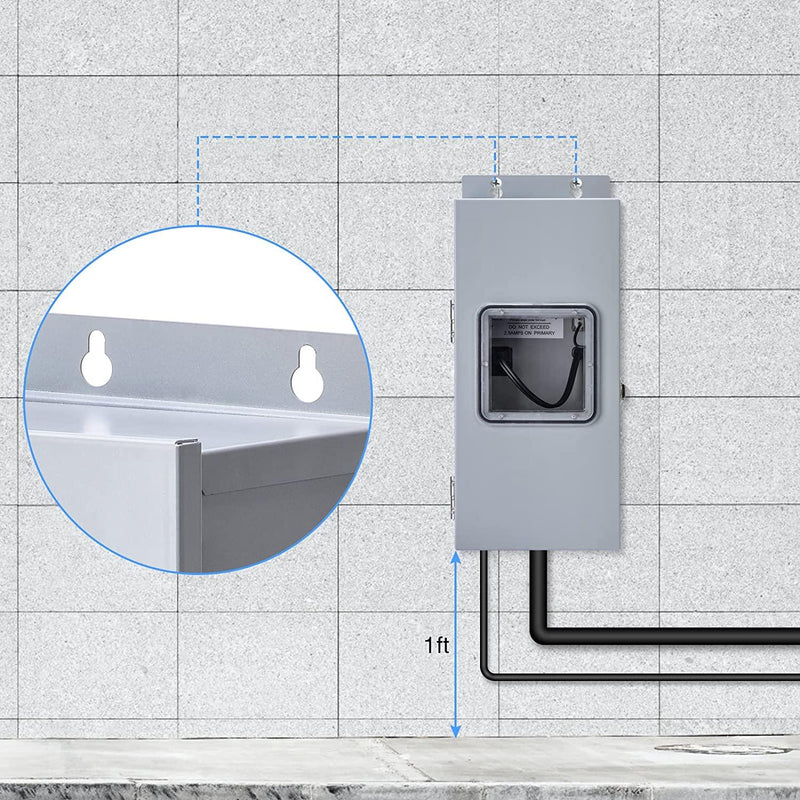

Easy to InstallSpacious wire compartment, knockouts in different positions, and removable bottom panel, all these make installation quick and easy. UL Listed 6ft SJTW 18AWG power cord. It is recommended that giving at least 1ft of clearance between the ground and the transformer. |
