Description

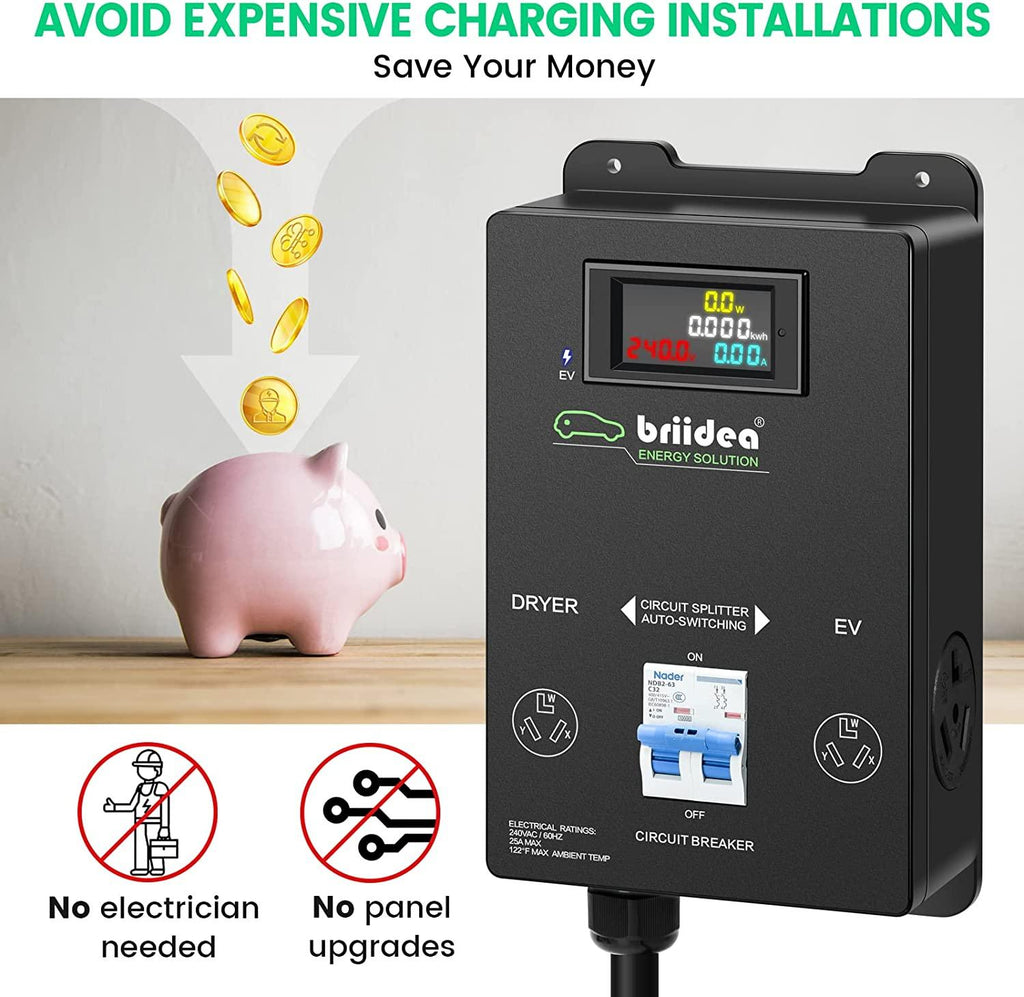

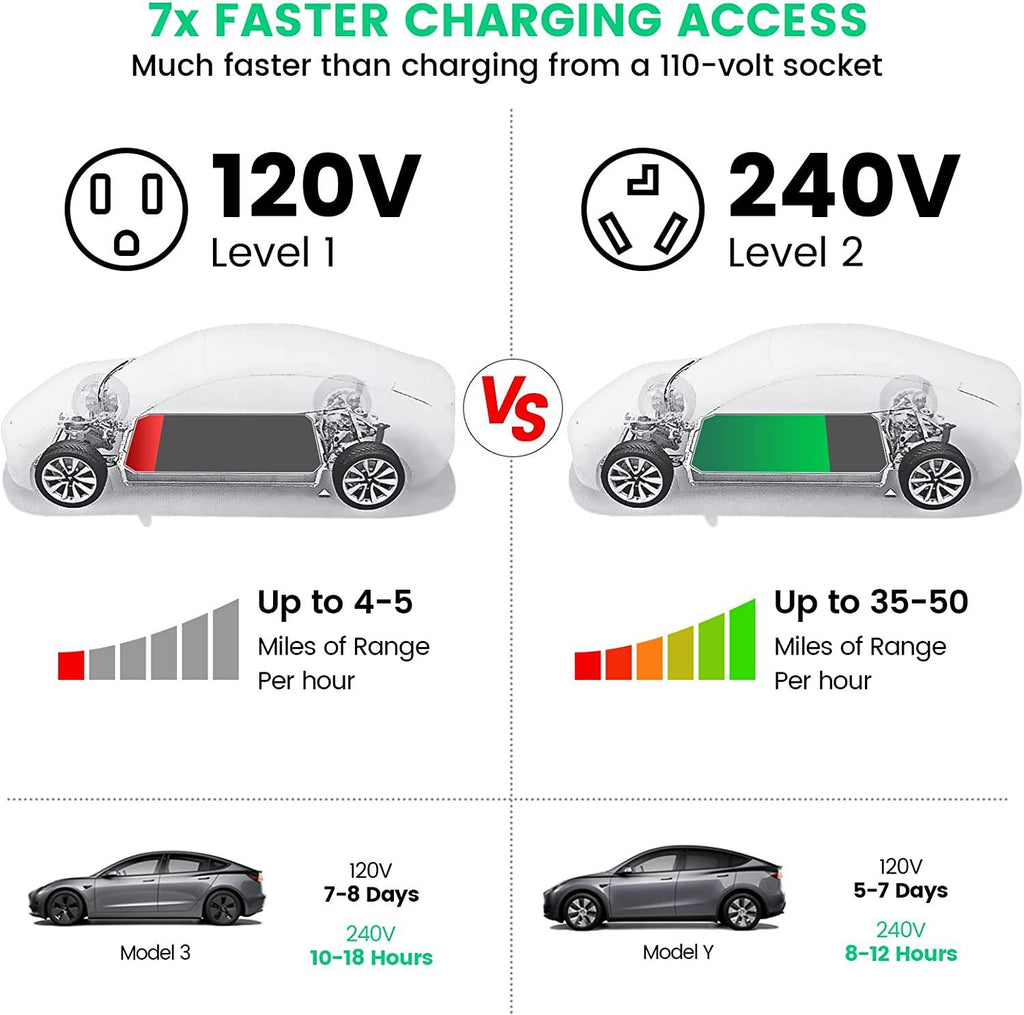

- SAVE MONEY & TIME: This switch allows you to charge EV from an existing 240-volt outlet in your home, automatically and safely share power with your dryer. No need to install another circuit, get an expensive panel upgrade, or hire an electrician. This can save you a lot of money! Besides, the charging speed is much faster than a normal 120-volt source, save time
- PERFORMANCE UPGRADE: Adopting new algorithm identify the action of the dryer more accurately. Added switching time protection to avoid frequent switching of electrical appliances; The use of more excellent electronic components reduces the sound of the product during the switching process; Lighter volume, but can support greater power: 5.76KW

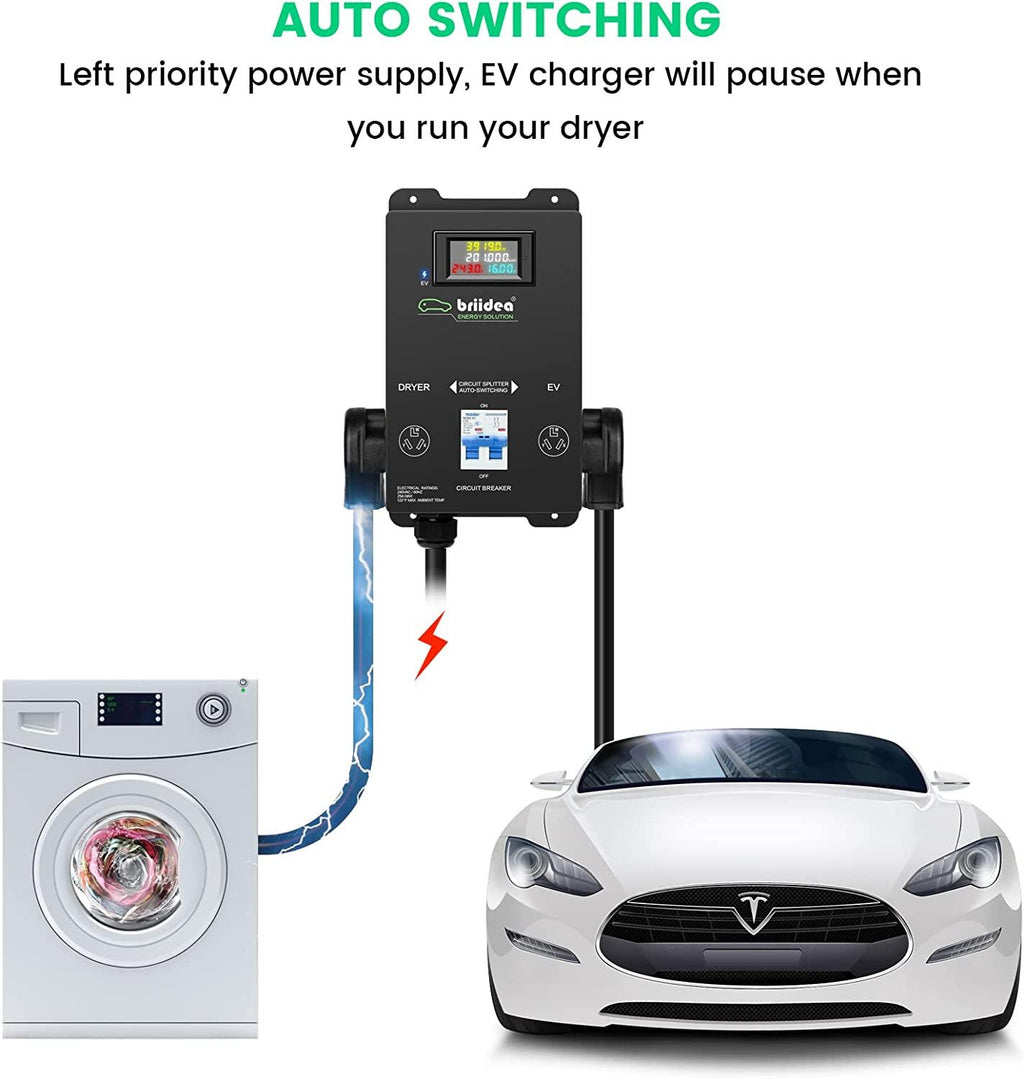

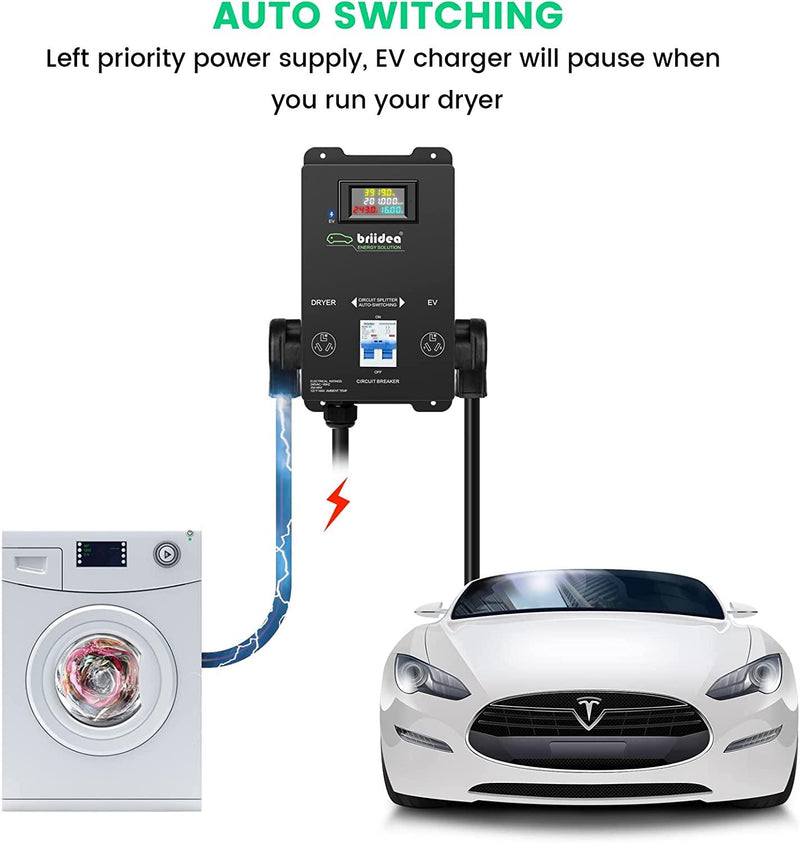

- SMART AUTO SWITCHING: Auto switching eliminates the risk of overheat or overcurrent during simultaneous operation. The splitter prioritize power to the dryer side. When the dryer is done, it will automatically switch to EV socket and charge your car, make home charging quite simple

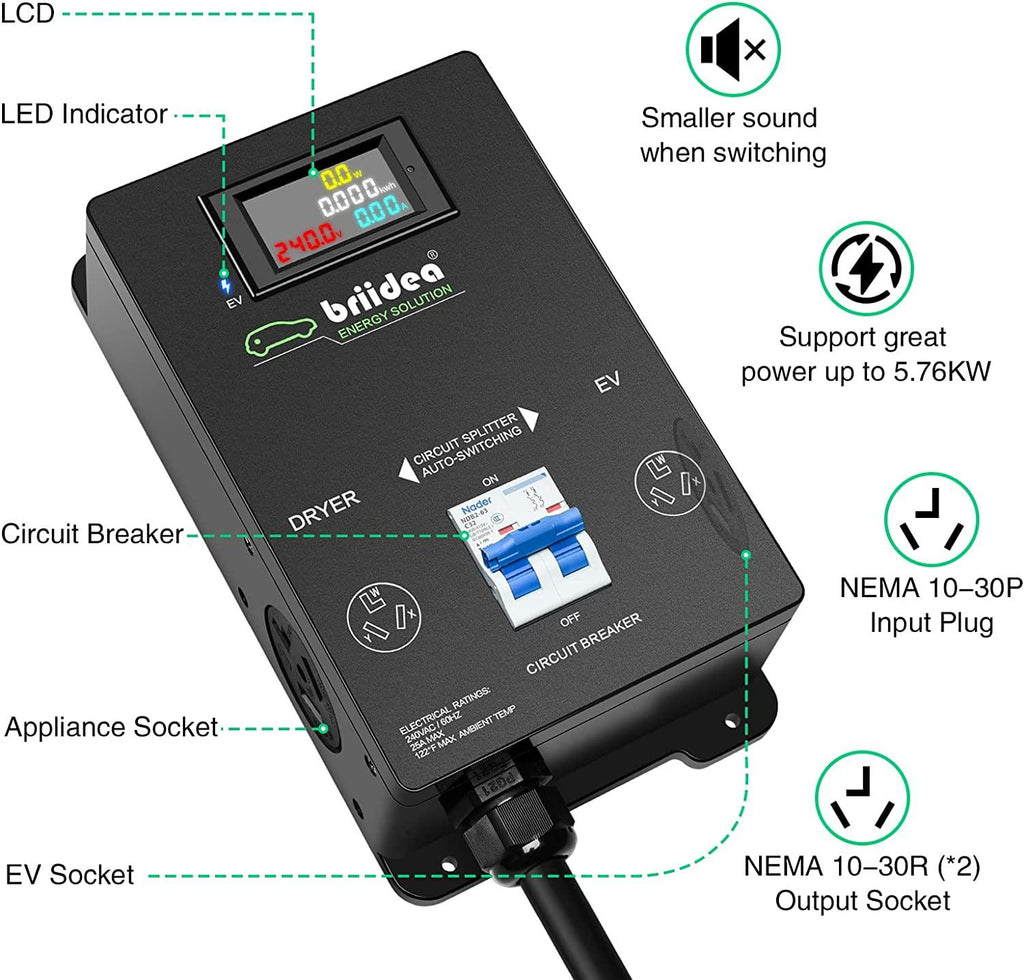

- REAL-TIME POWER DISPLAY: LCD screen intuitively displays various parameters in real time including power, accumulated KWh, voltage, amperage. And LED indicator will light up when EV is charging. The current EV operating status is clear at a glanced
-

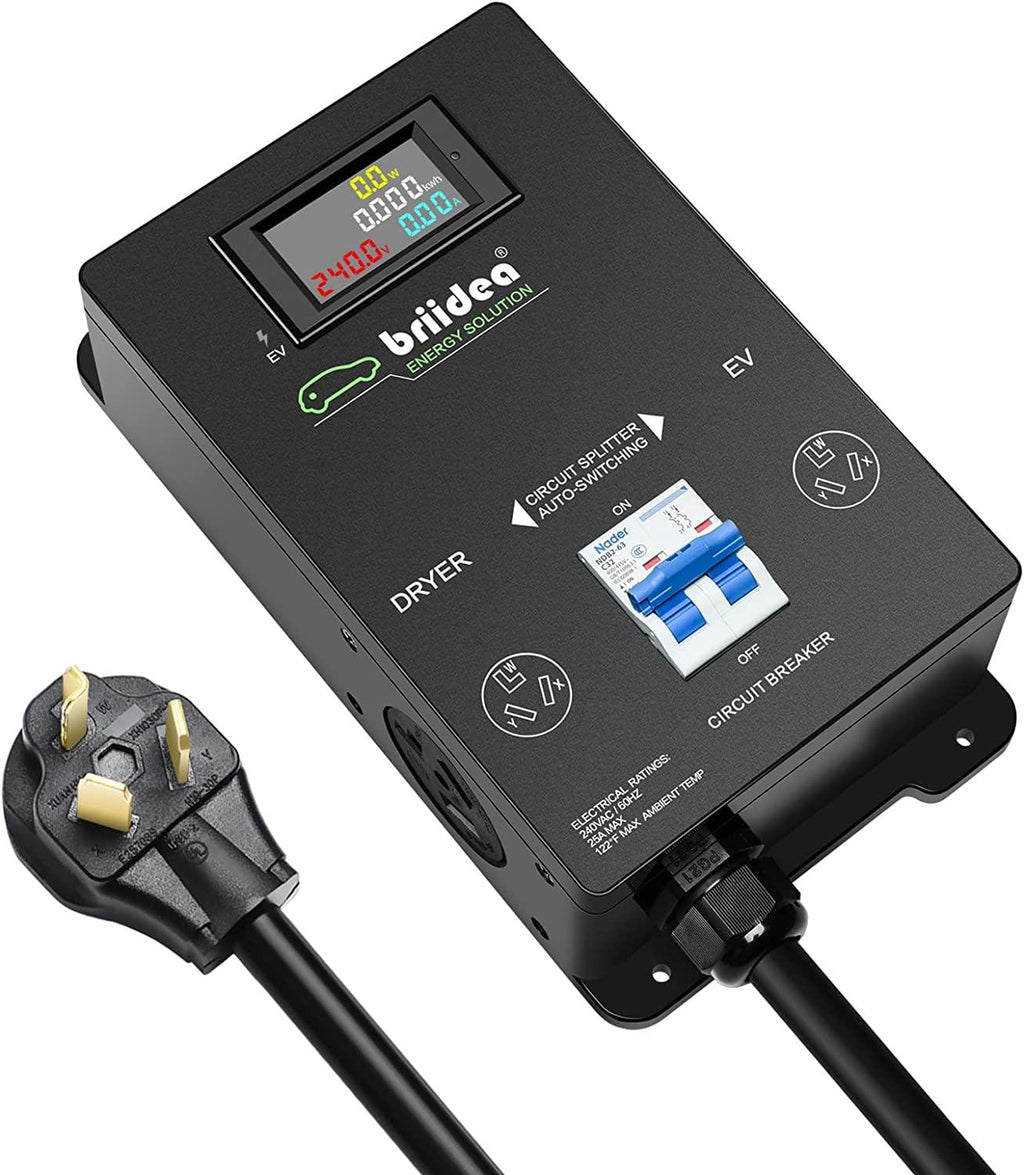

COMPATIBILITY: Compatible with common electric vehicles and third-party chargers. This unit is built with NEMA 10-30 plug to two NEMA 10-30 outlets. It supports a maximum continuous load of 25 amps, a maximum safe charging rate of 24 amps, and a maximum power of 5.76 KW
Why is briidea Automatic Power Switch Worth Having?
Green travel, low-carbon life. Electric vehicles are on the rise. The switch makes home EV charging one less thing to worry about. Safely share power on an existing 240v socket with your dryer and EV charger. There’s no need to install another circuit or get an expensive panel upgrade. If you are a renter, making changes to your home is even more of a challenge. With Briidea automatic power switch, you will spend less money and time on EV charging. Enjoy your free time then!
Packing List
- Briidea Switch Device *1
- Bracket Screws *5
- Wall Anchors*5
- User Manual*1
Specifications
- Maximum Load: 240VAC ~60Hz 25A
- Nominal Intended Power: 220-240VAC ~60Hz
- Maximum continuous load: 25A
- Maximum safe charging rate: 24A
- Maximum power: 5.76KW
- Dust and Water protection: Indoor Use Only
-
Case Flammability Safety Rating: UL94 V-0
