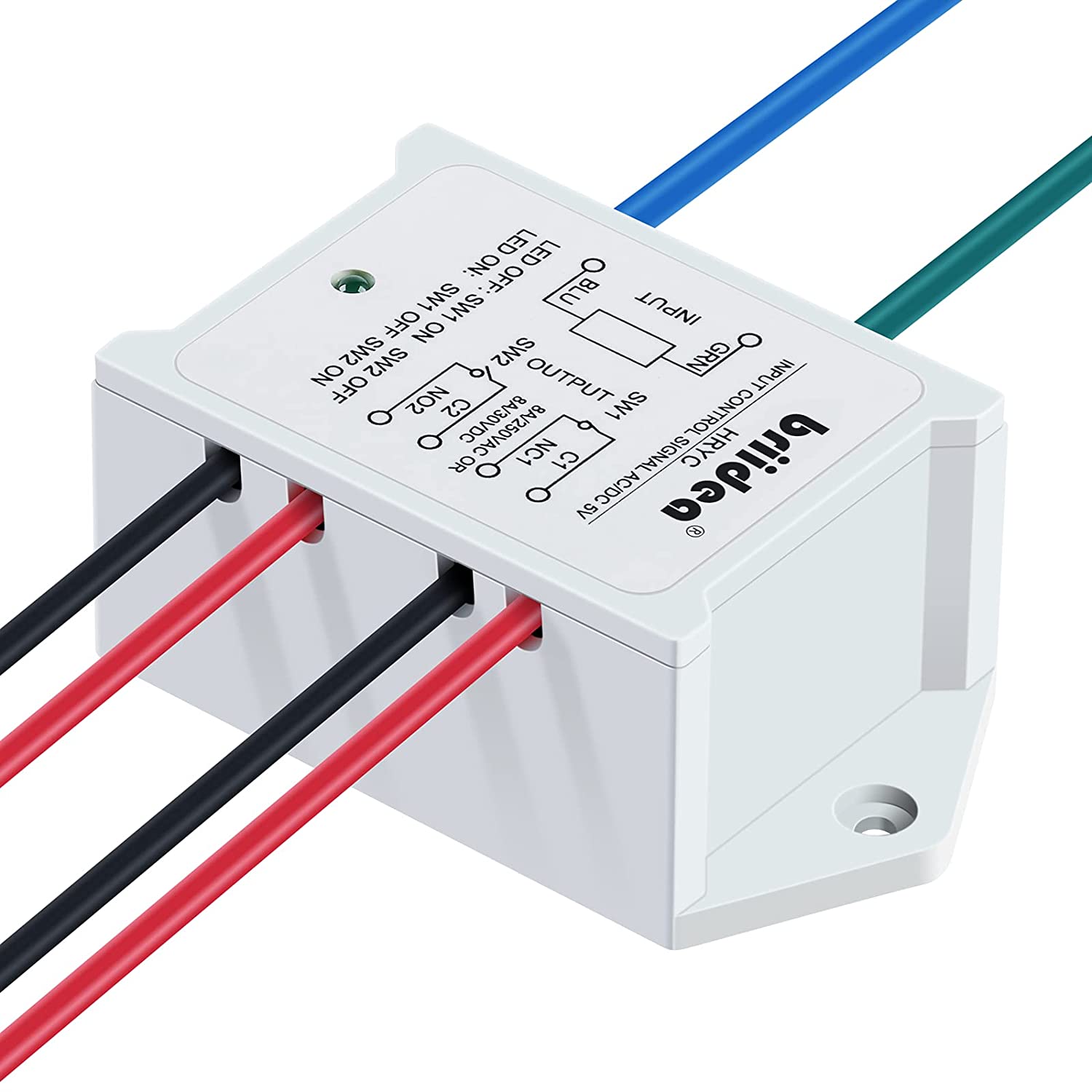

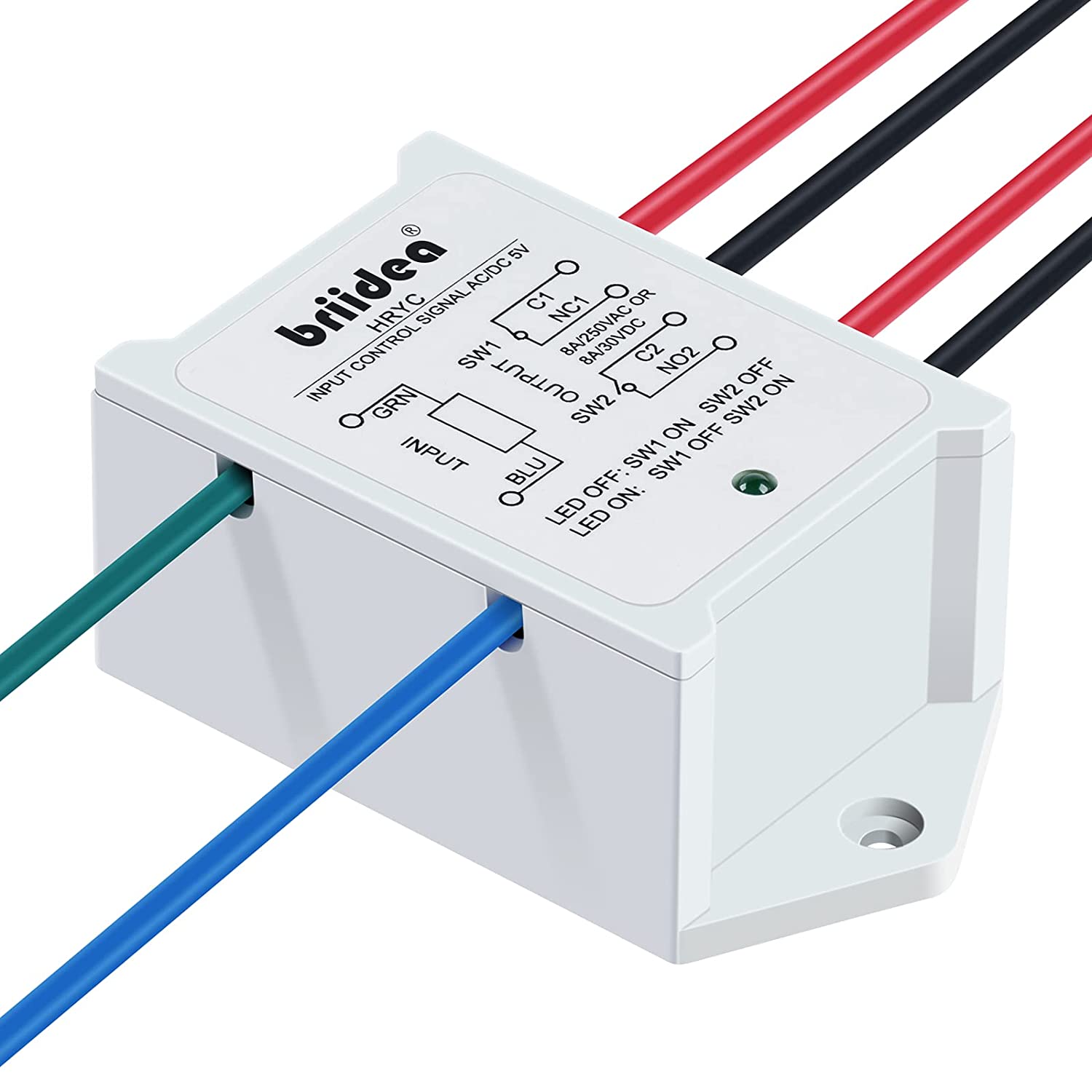

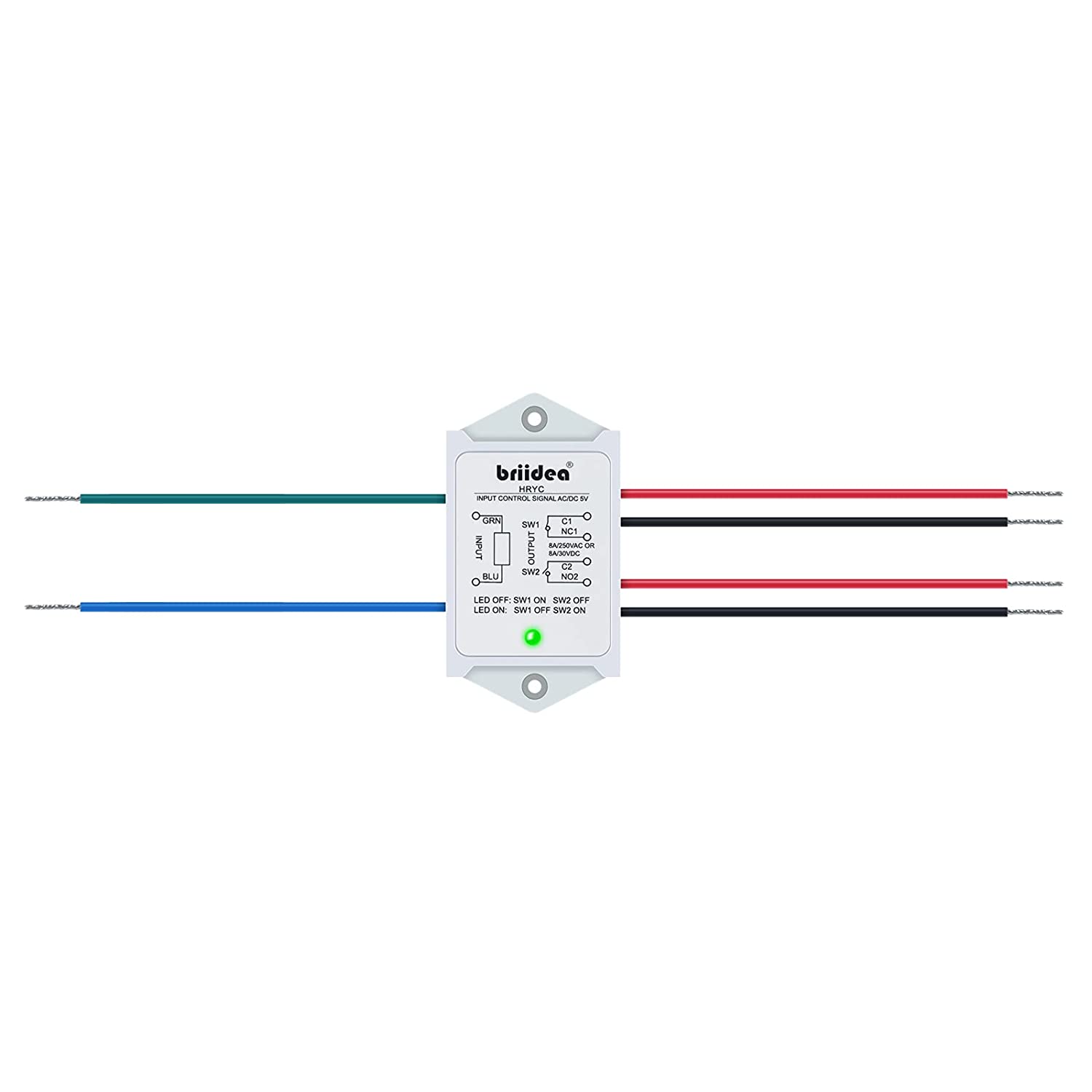

DPST 1NO 1NC 8Amp Power Relay Module, Briidea 5V AC/DC Power Relay Control Voltage, White
Shipping Method
All orders are processed within 0-1 business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email.
We use the standard free shipping, and the shipping time may be 2-7 days.
We work with multiple shipping partners, including USPS, FedEx, and Amazon Logistics, to ensure your order arrives safely and on time.
Return & Refund Method
All returns must be requested within 30 days of the received date in unused, pristine condition with original packing and all parts inside.
Payment Method
We support paypal, credit card payment
Product details
- INPUT CONTROL SIGNAL: Voltage AC or DC 5V, Current 80mA.
- OUTPUT CURRENT: Output switch DPST 1NO 1NC(Double Pole Single Throw, 1 Normally Open and 1 Normally Close ), rated current 8A/250VAC or 8A/30VDC (one switch).
- SIMPLE & PRACTICAL: This passive power relay module is simple and practical, which is very convenient to use. It can support both Normally Open and Normally Close.
- EASY MOUNT: The power relay is of compact plastic case and wires connects for easy mount. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. Of course, you can also choose not to lock the screw.

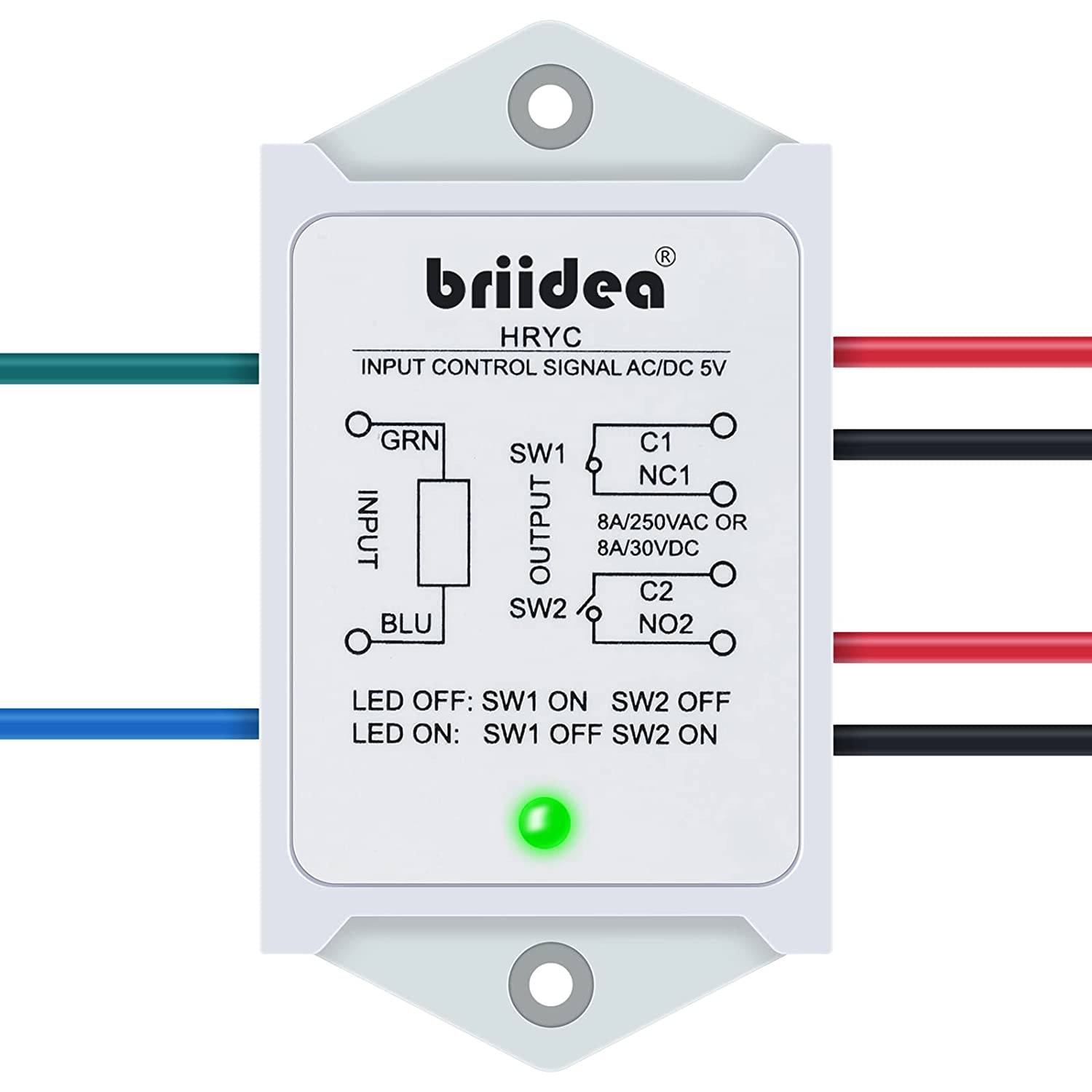

- LED INDICATION: This power relay has a led indicator for relay action indication. It is obvious to know the status of the switch at a glance.
Input control signal: Voltage AC or DC 5V,12V, 24V Current 80,33,17mA.
Output Switch DPST 1NO 1NC(Double Pole Single Throw, 1x Normally Open and 1x Normally Close ), rated current 8A/250VAC or 8A/30VDC (one switch).
This passive power relay module is simple and practical, which is very convenient to use. In addition, it has a led indicator for relay action indication. It is obvious to know the status of the switch at a glance.

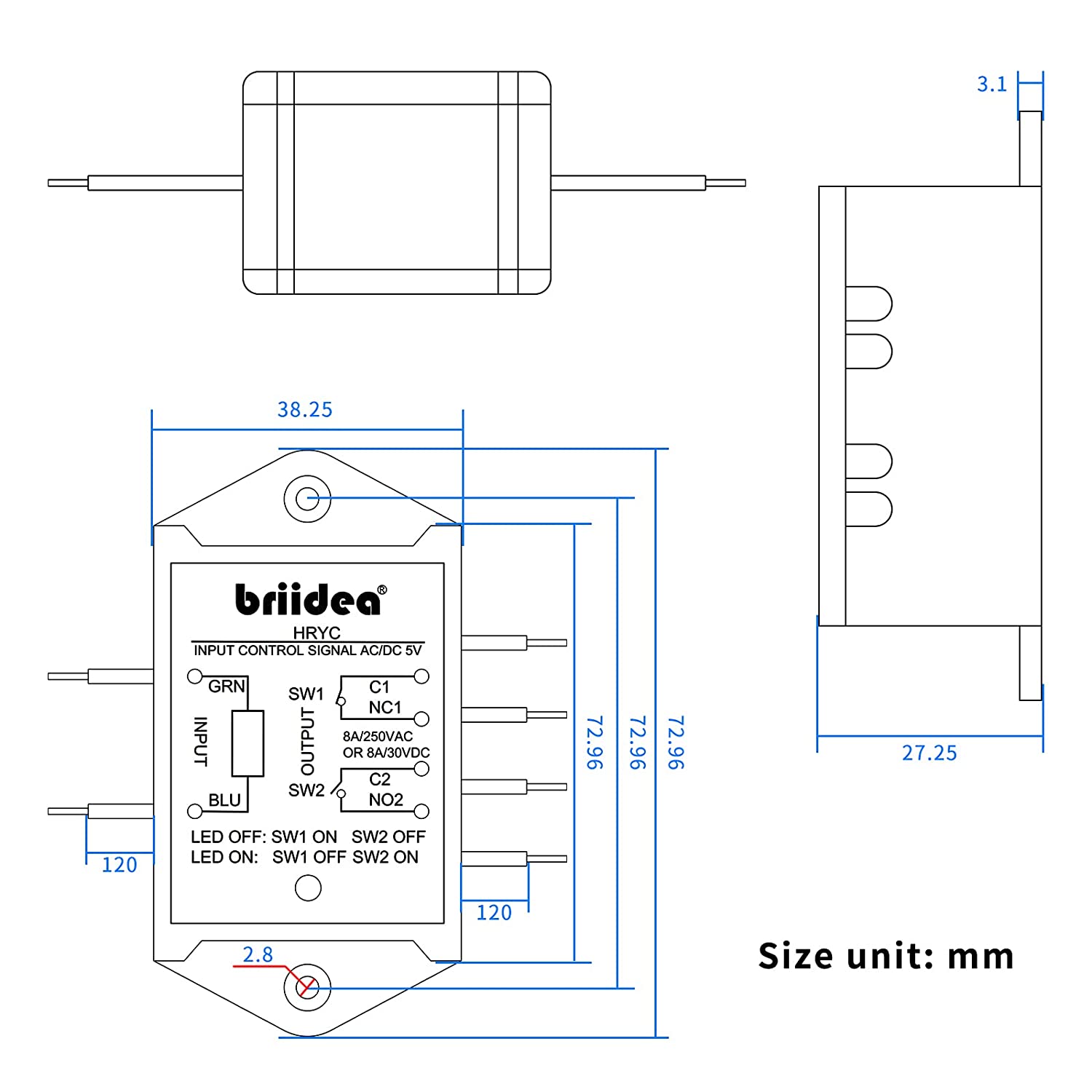

Easy Installation
The power relay is of compact plastic case and wires connects for easy mount. Two screw mounting holes are convenient for you to fix it on the wall or wooden board. Of course, you can also choose not to lock the screw.
