Description
- HIGH STRENGTH: Solid steel plate for intermediate support, high strength and good impacting resistance. Electro-galvanized zinc, rust-proof. The ball bearings are made of stainless steel, no lubrication required.

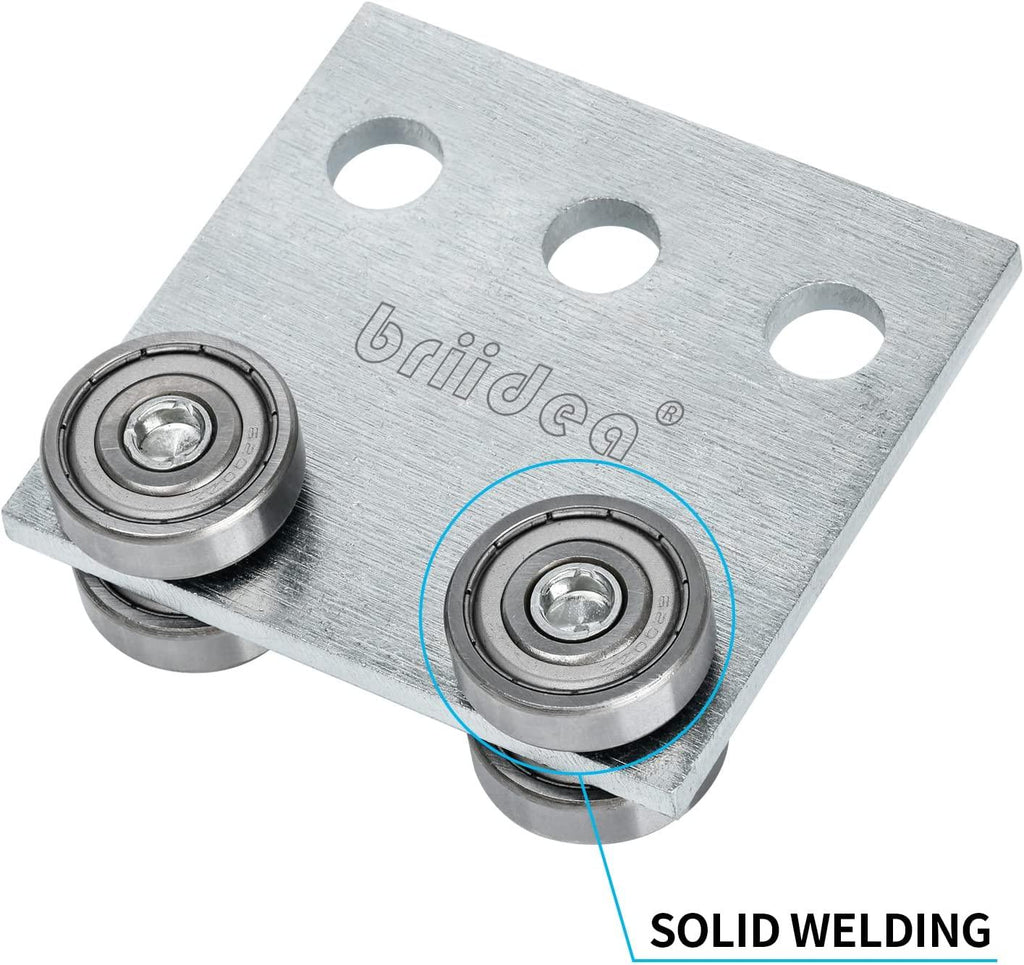

- FIRM WELDING: The ball bearing and pin shaft are firmly welded to ensure the stability of the work.

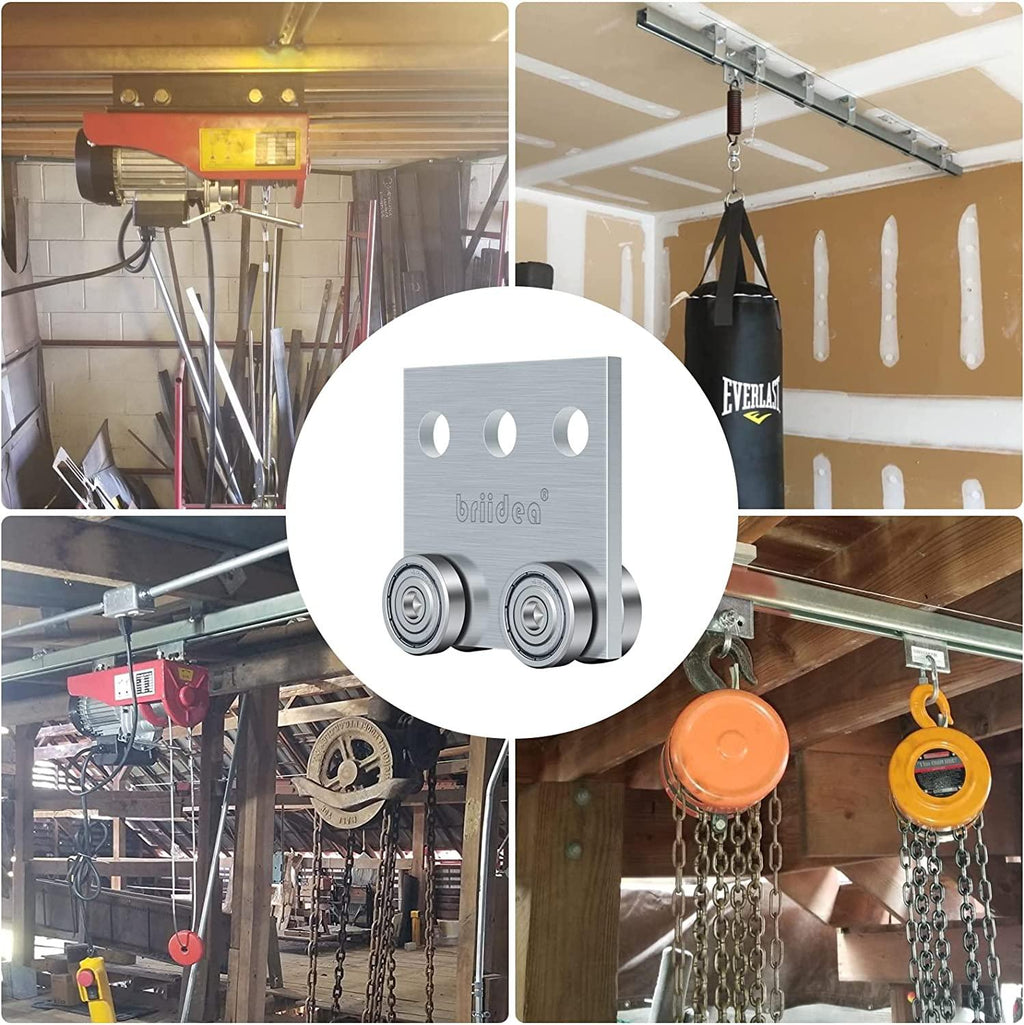

- APPLICATIONS: Wheel trolley for use with all 1-5/8" or taller strut channel.
- STABLY RUNNING: Very smooth and no noise when using. Design Load in 300 lbs. at 600 RPM, 450lbs. at 300 RPM, 600lbs. at 100 RPM load.
- SIZE: 9/16" (14mm), diameter hole, thickness: 1/4" (6mm) Package Include: 2 Pack wheel trolley assembly.
Specification
Product Name: 4 Wheel Trolley Assembly
Color: Silver
Finish: Electro-Galvanized Zinc
Material: Steel

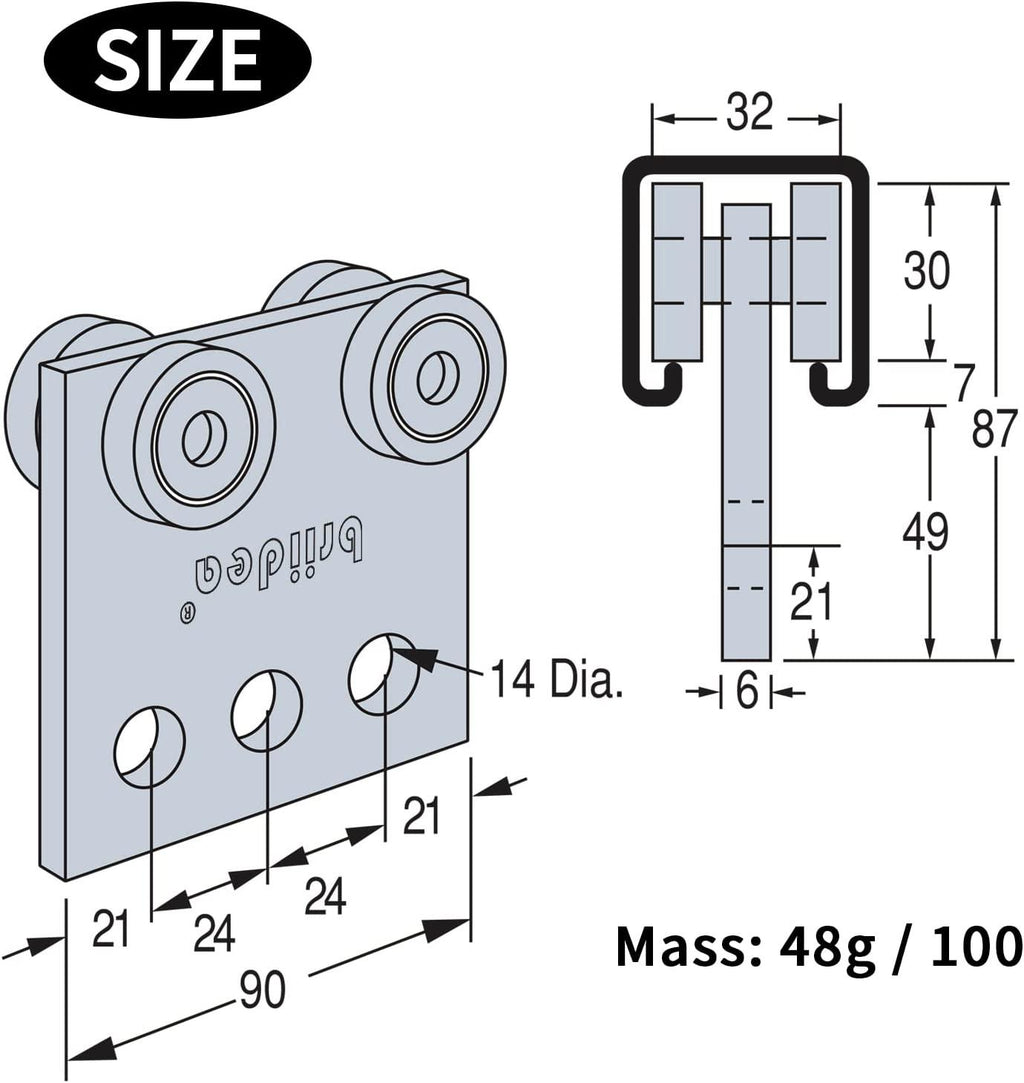

Strut Channel Trolley Width: 1-9/32 inch (32.5mm)
Steel Plate Thickness: 1/4" (6mm)
Steel plate hole diameter: 9/16" (14mm)
Max Load Bearing: 450pound/200kg

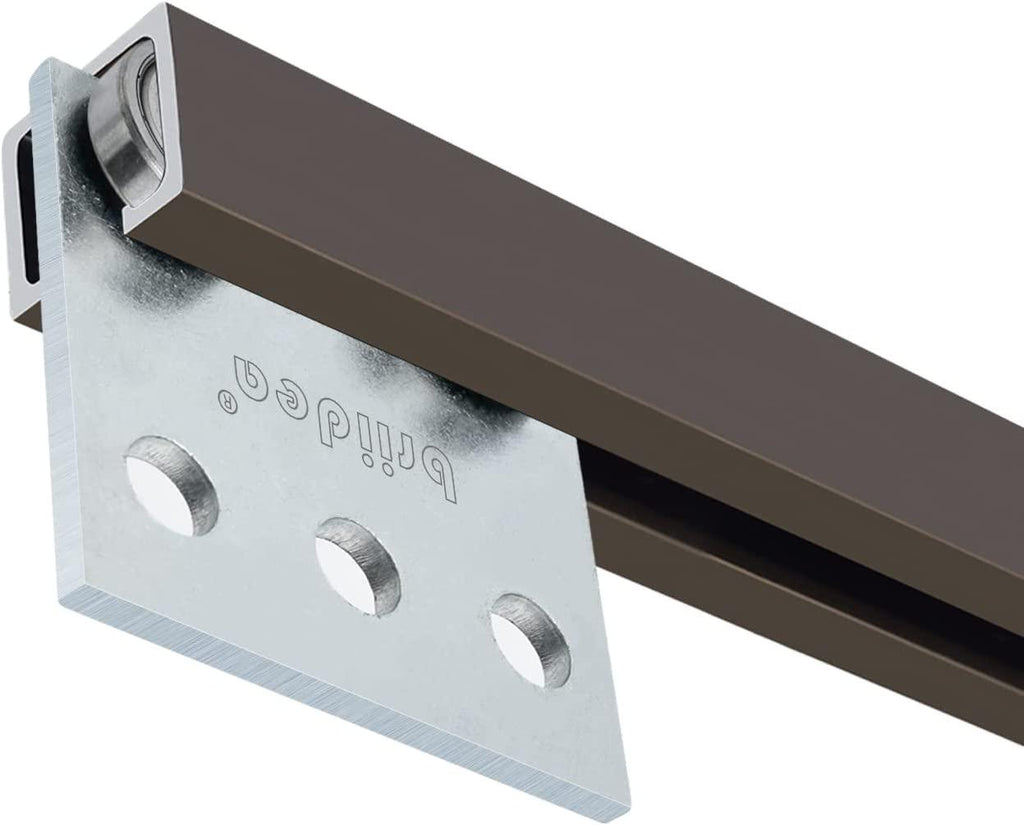

Roller Trolley Fit For: For use with 1-5/8" Wide and All 1-5/8" or Taller Strut Channel
Installation Note

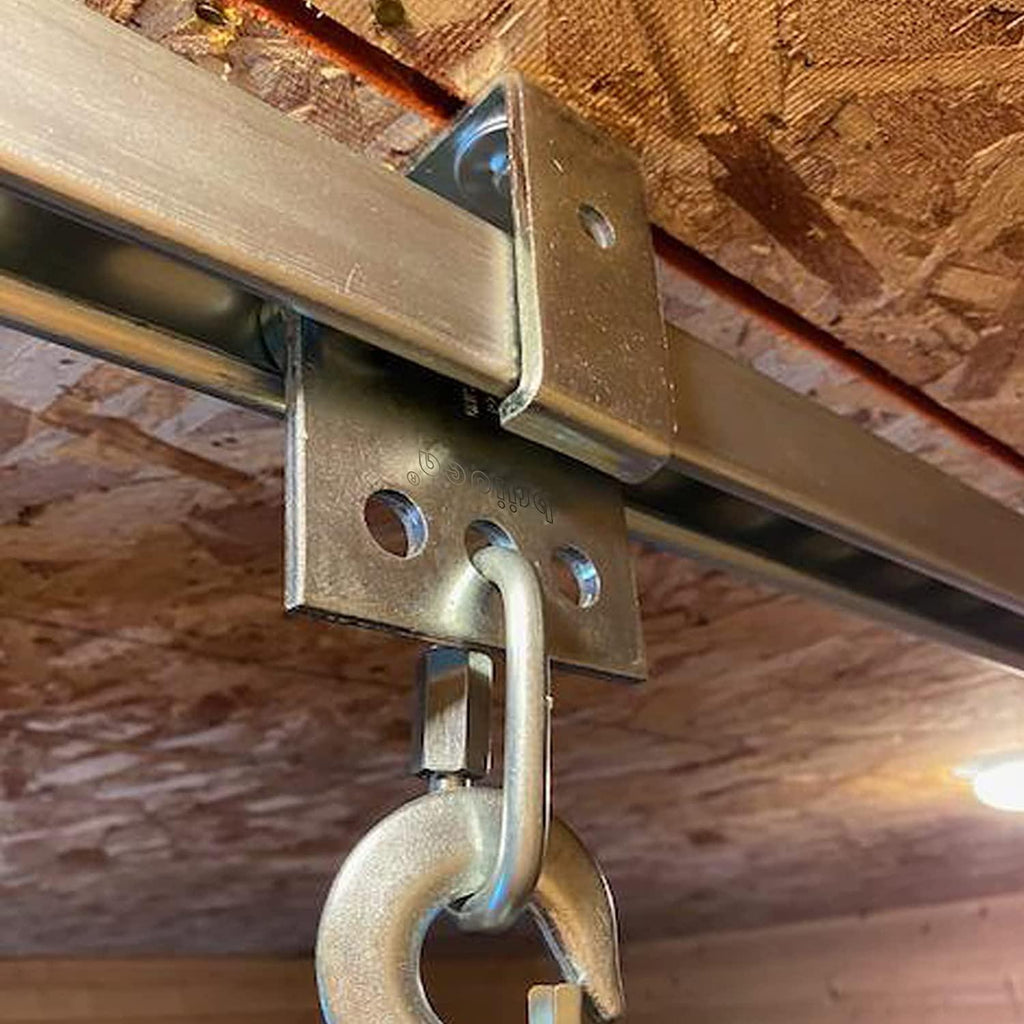

If the height of the strut channel used with the trolley wheel is not enough, the trolley wheel will encounter the mounting bolts inside the guide rail.
The strut channel is recommended to be used horizontally.
Package included

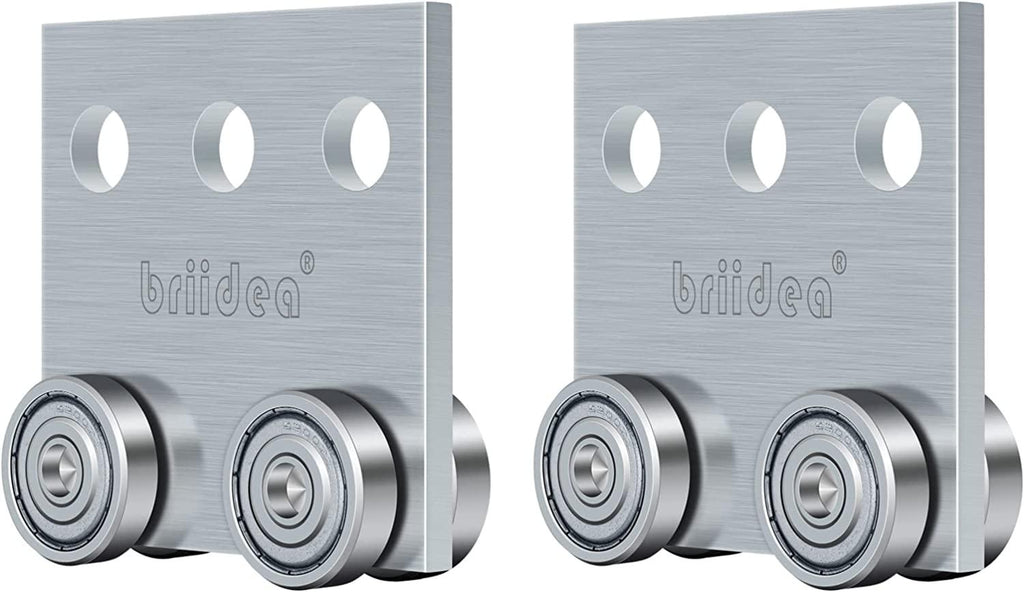

2pcs x 4 Wheel Trolley Assembly
